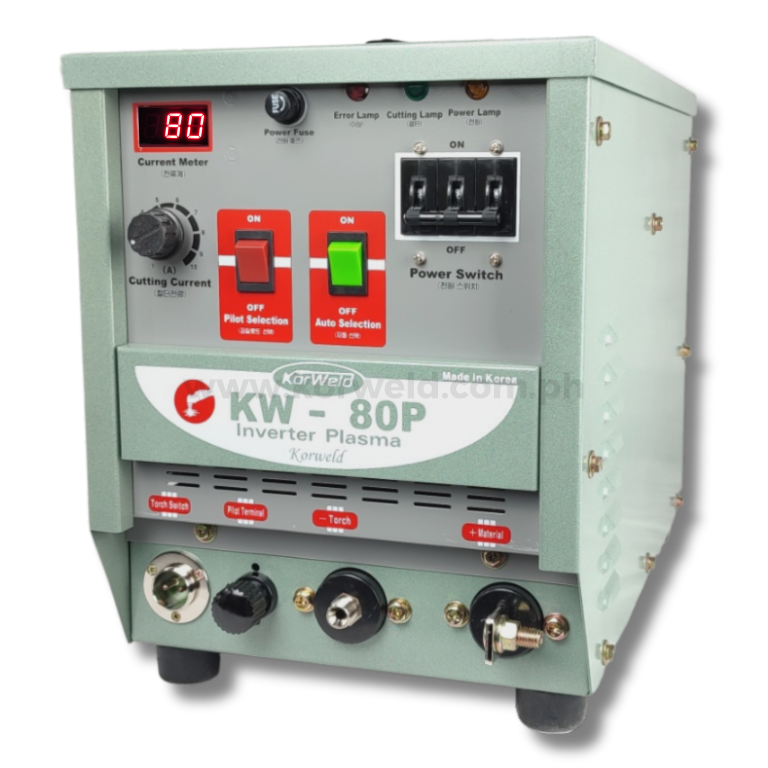

KORWELD Plasma Cutter 80P Inverter Type
Heavy-Duty Industrial Cutting Machine
KEY FEATURES
- ✓ Cuts metal with Air & Electricity only
- ✓ High quality cutting with lower expenses
- ✓ Light weight but heavy duty (60-90% duty cycle)
- ✓ Can cut all kinds of metal
- ✓ Warning lamp for malfunction
- ✓ Multiple Voltage Selection (220V / 380V / 440V) : 1&3 Phase
- ✓ High Tech Pilot & Continuous Cutting mode
- ✓ Made in Korea
TECHNICAL SPECIFICATIONS
| Model | KW-80P |
|---|---|
| Rated Input Voltage | 220V / 380V / 440V (1&3 Phase) |
| Rated Frequency | 50 / 60 Hz |
| Rated Input | 12 kVa |
| Load Voltage | 130V |
| Output Current | 15 - 70A |
| Duty Cycle | 60% |
| Regular Cutting Capacity | 15mm |
| Maximum Cutting Capacity | 25mm |
| Cooling | Air Cooled |
| Weight | 25kg |
| Dimension | L 47cm x W 28cm x H 39cm |
STANDARD INCLUSIONS

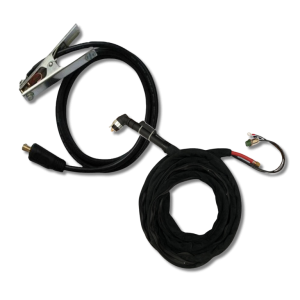

Plasma Torch Set and Ground Clamp Assembly
