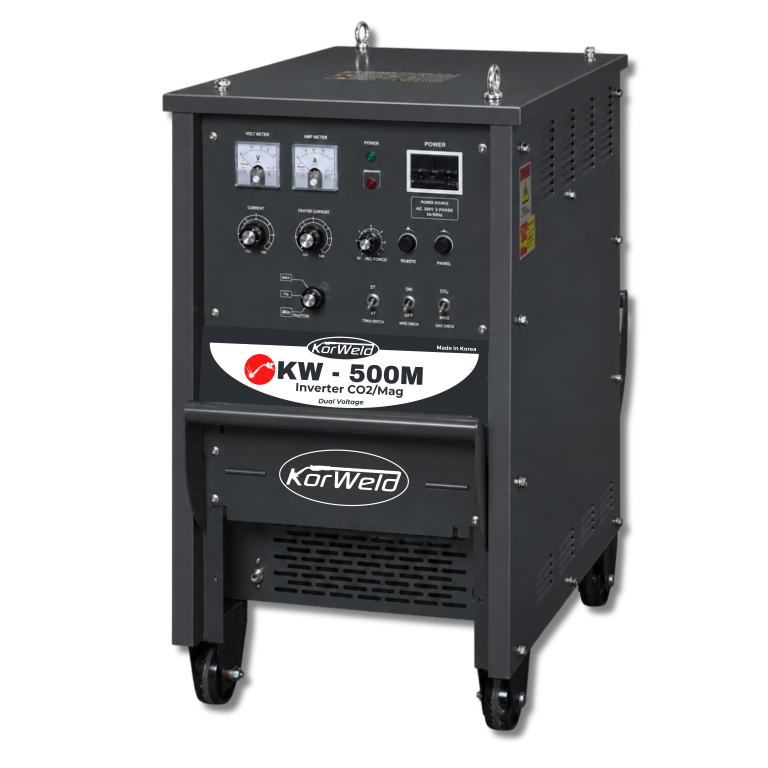

KORWELD CO2/MIG 500A Inverter Type Welding Machine
Heavy-Duty Industrial Welding Machine
KEY FEATURES
- ✓ High quality and fast welding
- ✓ Multiple Voltage Selection (220V / 380V / 440V) : 1&3 Phase
- ✓ Heavy duty
- ✓ Low Electric bill (60% Lower)
- ✓ Light and compact
- ✓ Designed for tropical weather
- ✓ Made in Korea
TECHNICAL SPECIFICATIONS
| Model | KW-500M |
|---|---|
| Rated Input Voltage | 220V / 380V / 440V (1&3 Phase) |
| Rated Frequency | 50 / 60 Hz |
| Rated Output Current | 50 ~ 500A |
| Rated Load Voltage | 16 ~ 38V |
| Rated Input | 24 kVa |
| No Load Voltage | 70V |
| Rated Usage Rate | 60% |
| Wire | 1.2 up to 1.6ø |
| Weight | 76.7kg |
| Dimension | L 60cm x W 41cm x H 74cm |

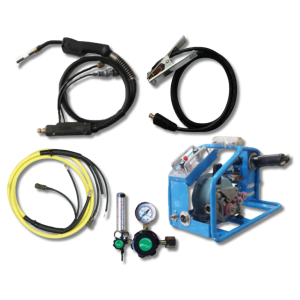

STANDARD INCLUSIONS
Wire Feeder, Single Cable, MIG Torch Set, Ground Clamp Assembly, Gas Hose and Regulator
