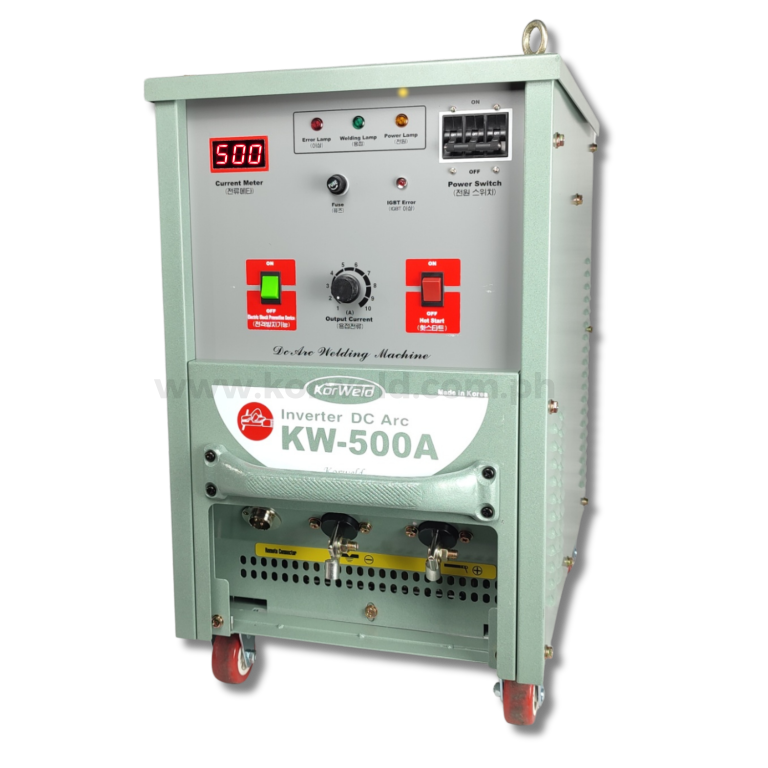

KORWELD ARC 500A DC Inverter Type Welding Machine
Heavy-Duty Industrial Welding Machine
KEY FEATURES
- ✓ Better than conventional welder
- ✓ Multiple Voltage Selection (220V / 380V / 440V) : 1&3 Phase
- ✓ Good for all kinds of electrode
- ✓ No electric shock
- ✓ Built-in sensor to prevent over heating
- ✓ Digital control : Fine and deep penetration
- ✓ Good for thin to thick metal
- ✓ Low Electric bill
- ✓ Made in Korea
TECHNICAL SPECIFICATIONS
| Model | KW-500A |
|---|---|
| Type | Digital |
| Rated Input Voltage | 220V / 380V / 440V (1&3 Phase) |
| Input Current | 30kW |
| Output Current | 20A - 450A |
| Rated Frequency | 50 / 60 Hz |
| No Load Voltage (ESP ON) | 12V |
| Load Voltage (ESP OFF) | 85V |
| Rated Load Voltage | 32V |
| Duty Cycle | 80% |
| Usable Electrode | up to 6.0ø |
| Weight | 48kg |
| Dimension | L 68cm x W 38cm x H 70cm |
STANDARD INCLUSIONS

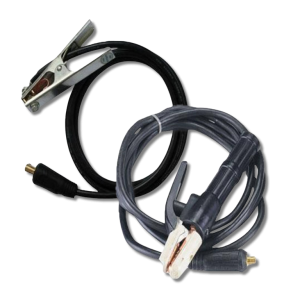

3mts Electrode Holder and 2mts Ground Clamp Assembly
